Device & Installation Overview



Here's a quick video to walk you through installing a HAVEN Central Air Monitor.

We recommend all HAVEN Pros watch this video before attempting their first installs.



PLEASE NOTE!

The app interfaces you see in this video are slightly outdated but the basics are still valid. We're going to be releasing a new install video in the coming months, so stay tuned!





Requirements for Installation

Prerequisites

  • Ducted central air system

    • Monitor is suitable for any duct that has minimum depth/diameter of 8"

    • Round or rectangular, rigid, flex or ductboard

  • Within the range of WiFi

    • 802.11 b/g/n

    • WPA or Open

  • Android or iOS phone with HAVEN IAQ app downloaded and Bluetooth enabled

Parts INCLUDED

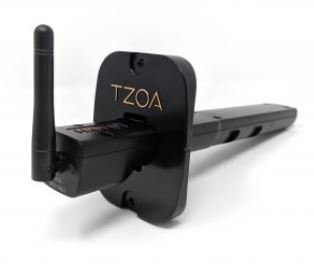

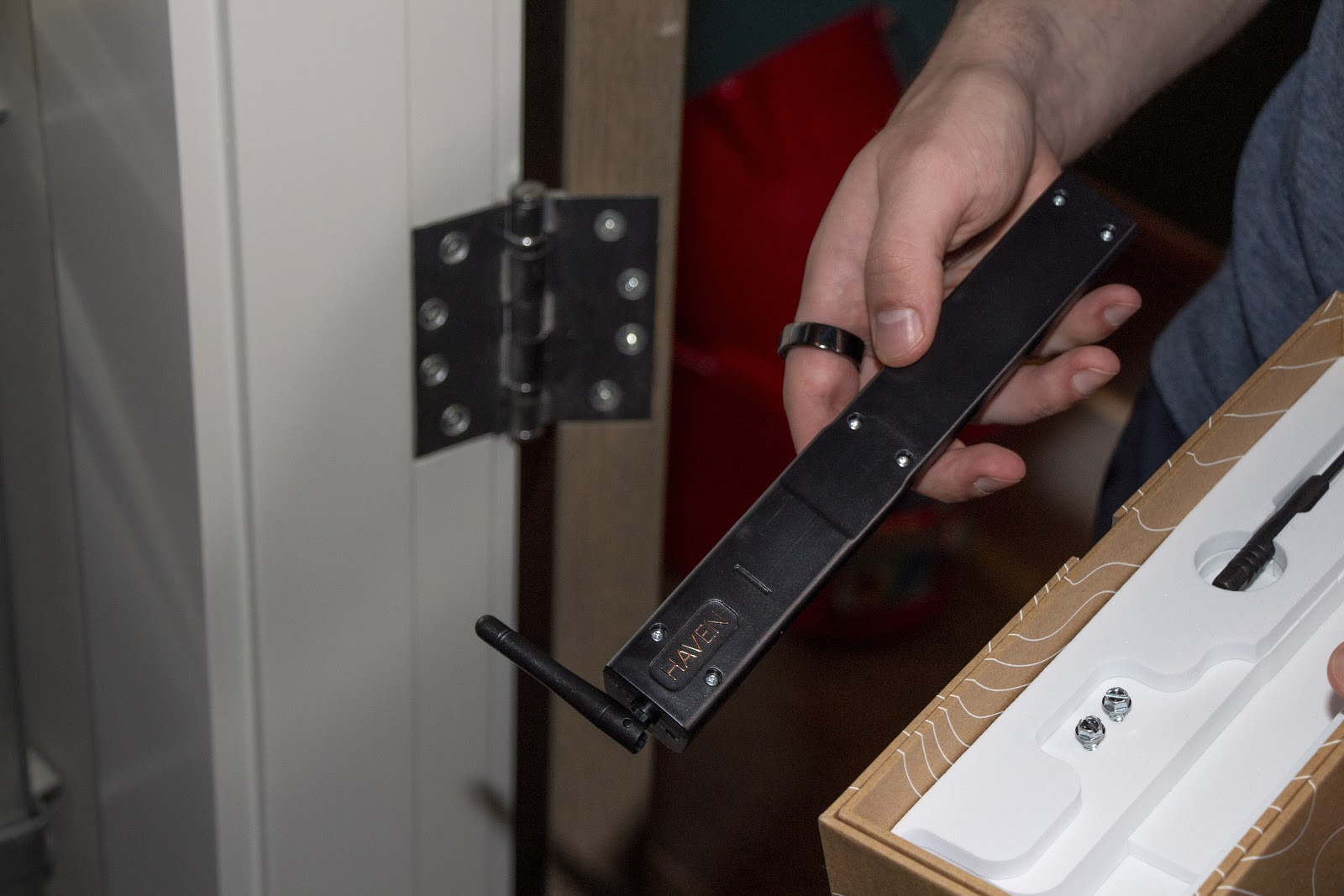

  • HAVEN Central Air Monitor

  • Mounting plate

  • Alignment plate
  • Gaskets x2

  • Screws x2

  • Wago splicing connectors x2

Parts NEEDED (not included)

  • ~12ft of 2 wire cable (18-24 gauge)
  • Optional - 24VAC wall plug

Tools NEEDED

  • Drill

  • Hole saw (1 ½” for rectangular ducts, 2” for round ducts)

  • 1/4” hex driver

  • Wire strippers

Recommended tools

  • Psychrometer

Optional tools

  • Non-contact voltage testing tool






Duct Placement

Just one thing before we kick off the installation: Do NOT secure the faceplate to the duct until the angle validation step is completed in the HAVEN IAQ app. This step is critical for finding the most reliable airflow signal. You'll thank us for eliminating any extra work, and your customer's ductwork will remain in good condition.

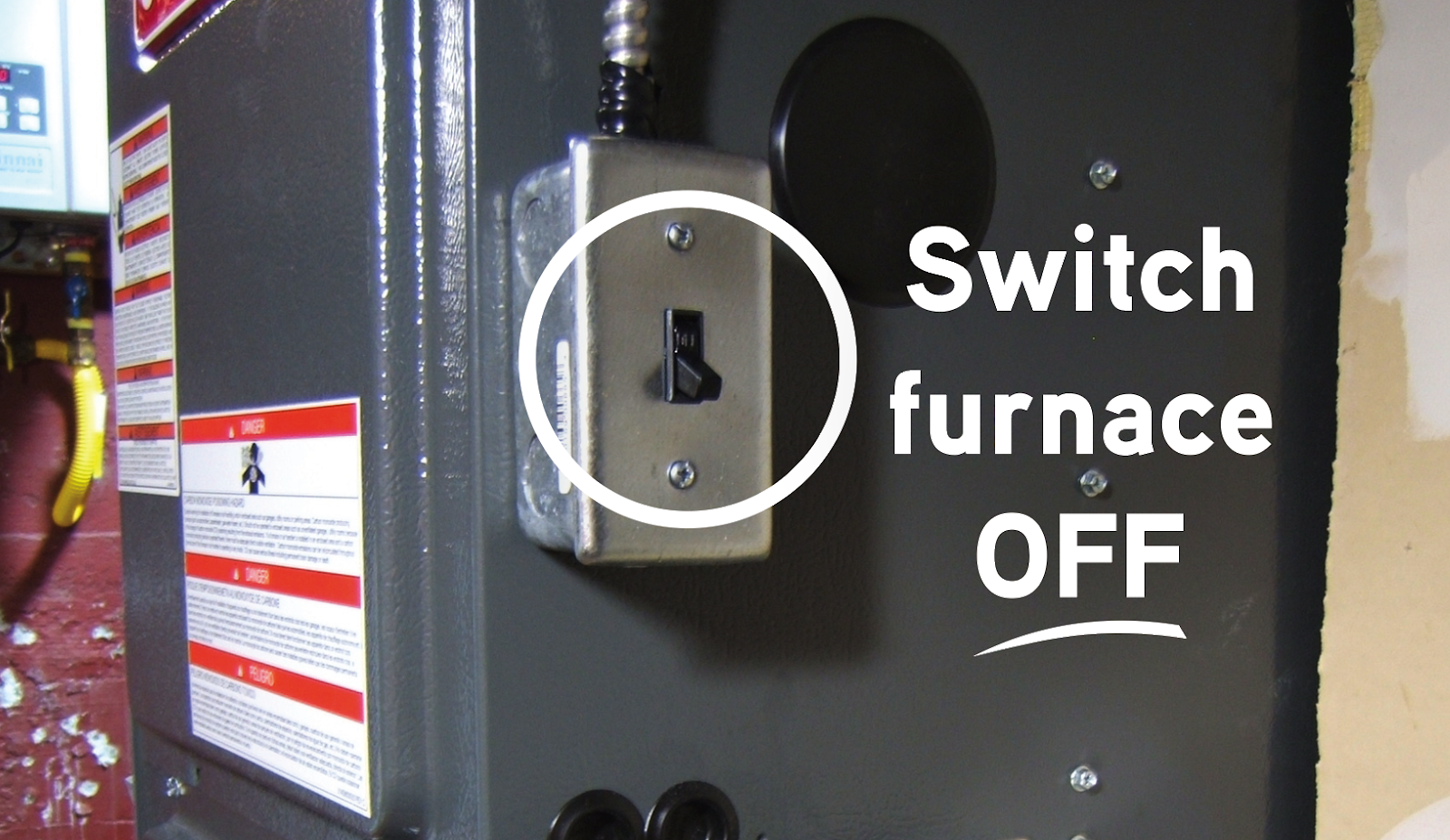

1. Turn off the furnace power.

Do not proceed unless this is complete.

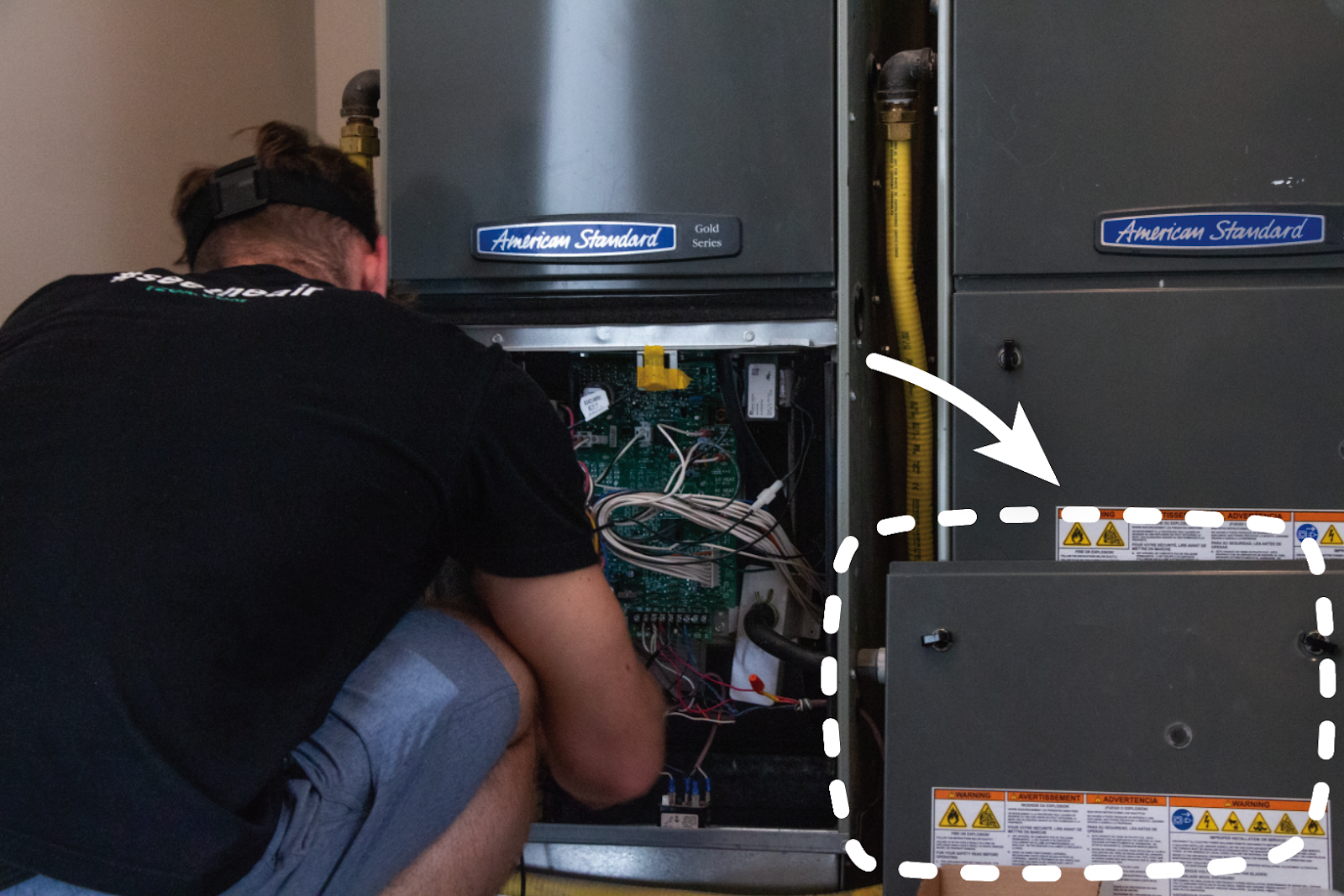

2. Open the furnace door to reveal the furnace control board.



3. Determine the optimal Central Air Monitor location.

What to look for

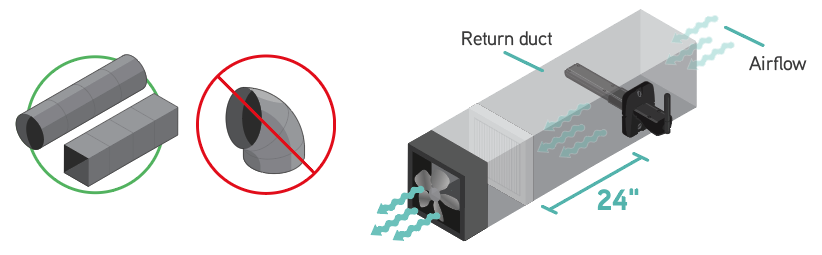

The Central Air Monitor is designed to be installed on both round and rectangular ducts that are a minimum of 8” in diameter. The optimal location is 2ft upstream of the furnace filter in a straight section of the RETURN duct to avoid air turbulence. If possible, also avoid installing within 24” of duct bends or other obstructions.

Airflow in the duct

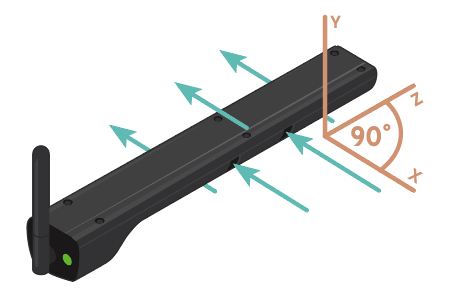

The Central Air Monitor needs to be installed so that the probe is perpendicular to the airflow (see image below); this will ensure that the device is able to accurately measure airborne particles and chemicals. The HAVEN IAQ app allows you to optimize the exact angle at which it’s installed. This helps increase the stability of the airflow signal and maximize the airflow speed through the probe’s air channels.

The Central Air Monitor requires a minimum airflow velocity of 0.4 m/s or 80 fpm to accurately report data. We recommend confirming this level of airflow while the air handler is running on the lowest speed with an anemometer prior to installing the probe.



Within WiFi range

Use a WiFi-enabled device like your phone to make sure that the proposed mounting location is within range of the home’s WiFi network. Open the WiFi settings on your device to ensure it shows up on the list of detectable networks.

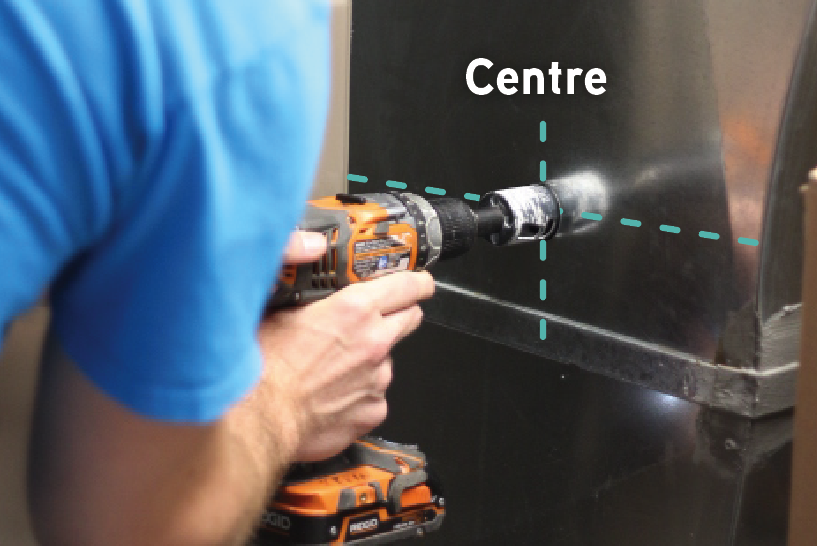

4. Mark the location & drill a hole in the center of the duct.

For rectangular ducts: use a 1 ½” hole saw

For round ducts: use a 2” hole saw



*Sorry for the Canadian spelling of center! :P We do things a little bit differently up here.





Wiring & Power

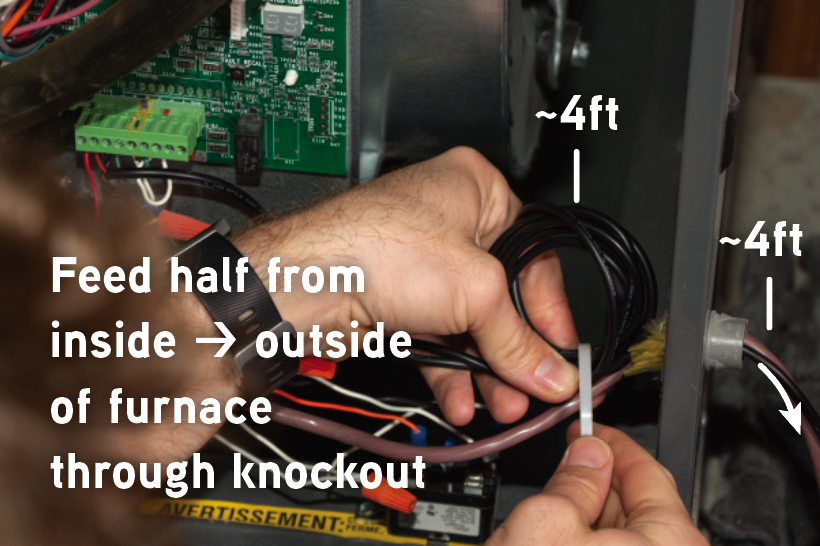

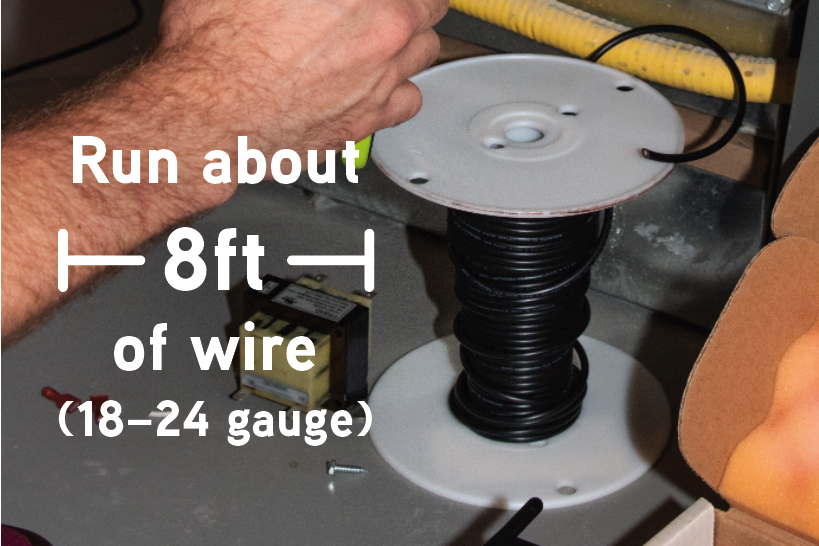

1. Run a length of wire (18-24 gauge) from the inside of the furnace to the outside where the Central Air Monitor will be installed. Leave some slack for any future maintenance.

We recommend using solid core wire. Use a knockout that allows the cable to stay put even when the furnace door is closed. Leave another 4ft of length before snipping the cable to ensure that it reaches the desired Central Air Monitor location in the duct.

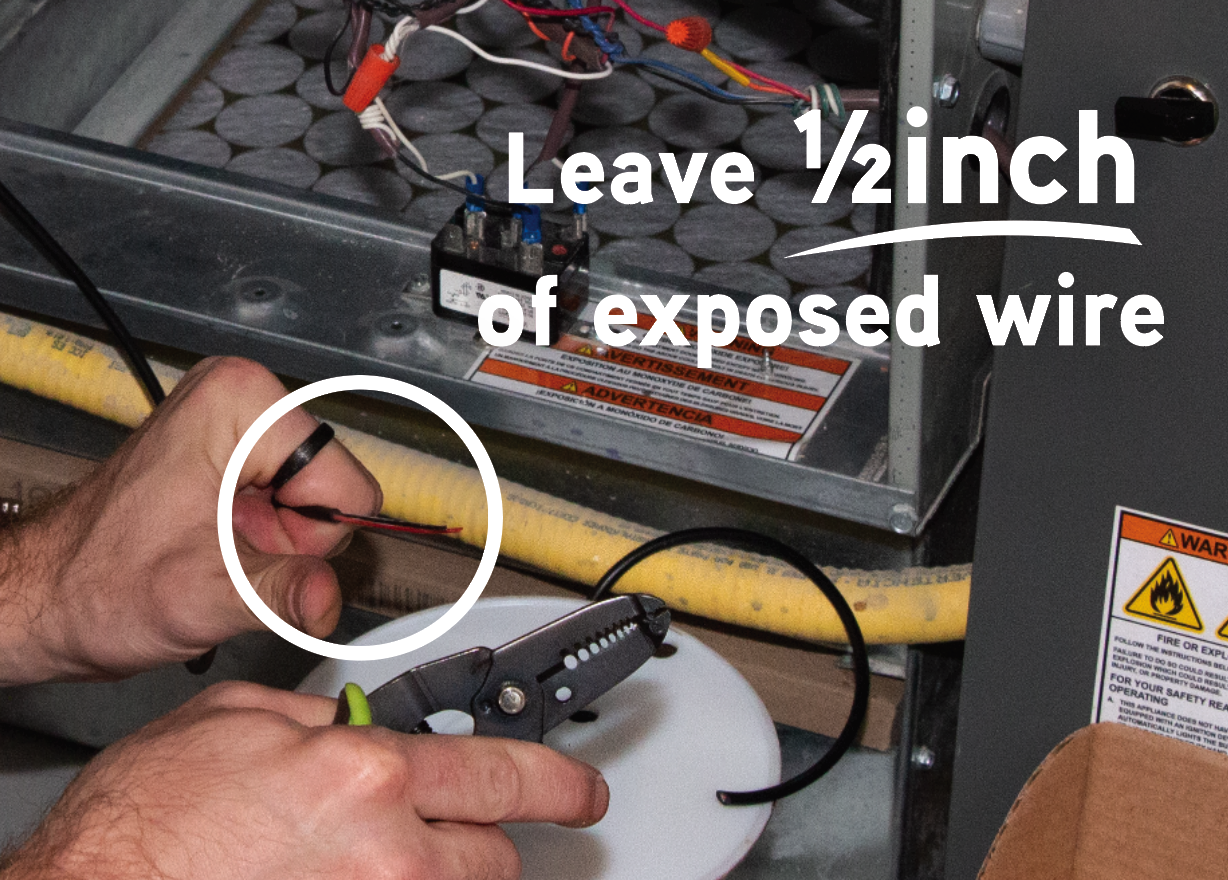

2. Using wire strippers, strip the jacket off both ends of the cable.

Make sure to leave ½” of exposed conductor on each wire.





3. Connect the Central Air Monitor to power.

There are multiple methods to connect the Central Air Monitor to power. It is advised to use a non-contact voltage testing tool to confirm that the power is not live before modifying furnace wiring.

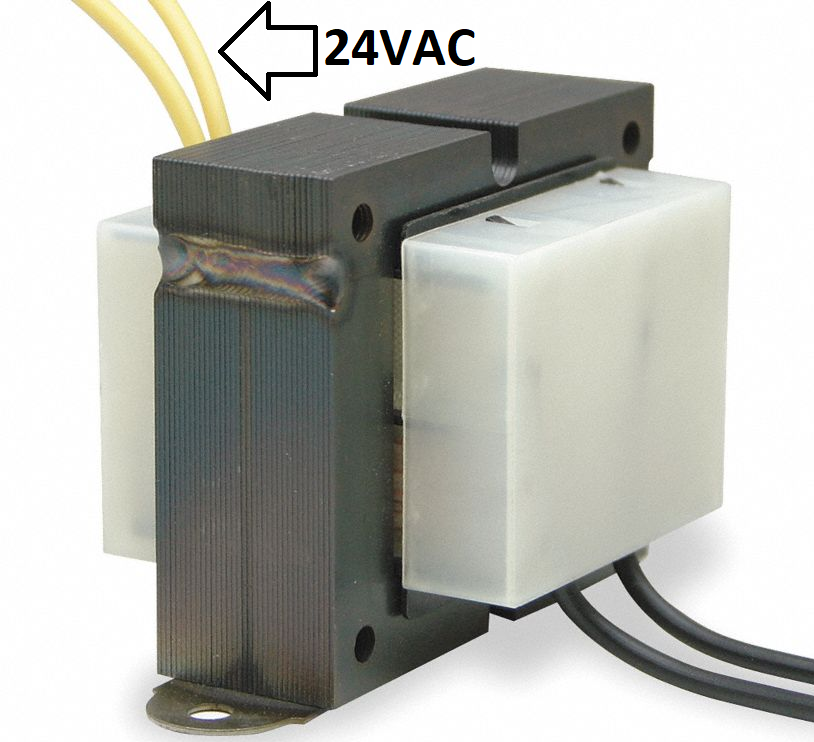

Method 1: Furnace Transformer (recommended)

Find the 24VAC lines (these are usually yellow). Using wire strippers, strip the jacket off the wires, leaving ½” of exposed conductor on both ends of the cable. Using an inline, twist on, push on, or splicing connectors, connect the two ends of the new cable to the dedicated transformer.



Method 2: Furnace Control Board

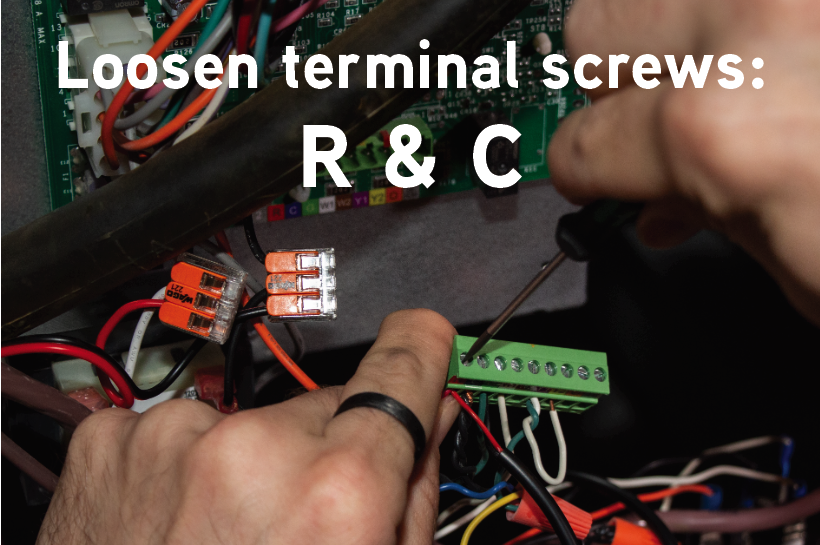

Inside the furnace, loosen the terminal screws of the “R” and the “C” terminals. Insert one wire into the “C” terminal and the other one into the “R” terminal. Tighten the screws securely.



Method 3: External Transformer

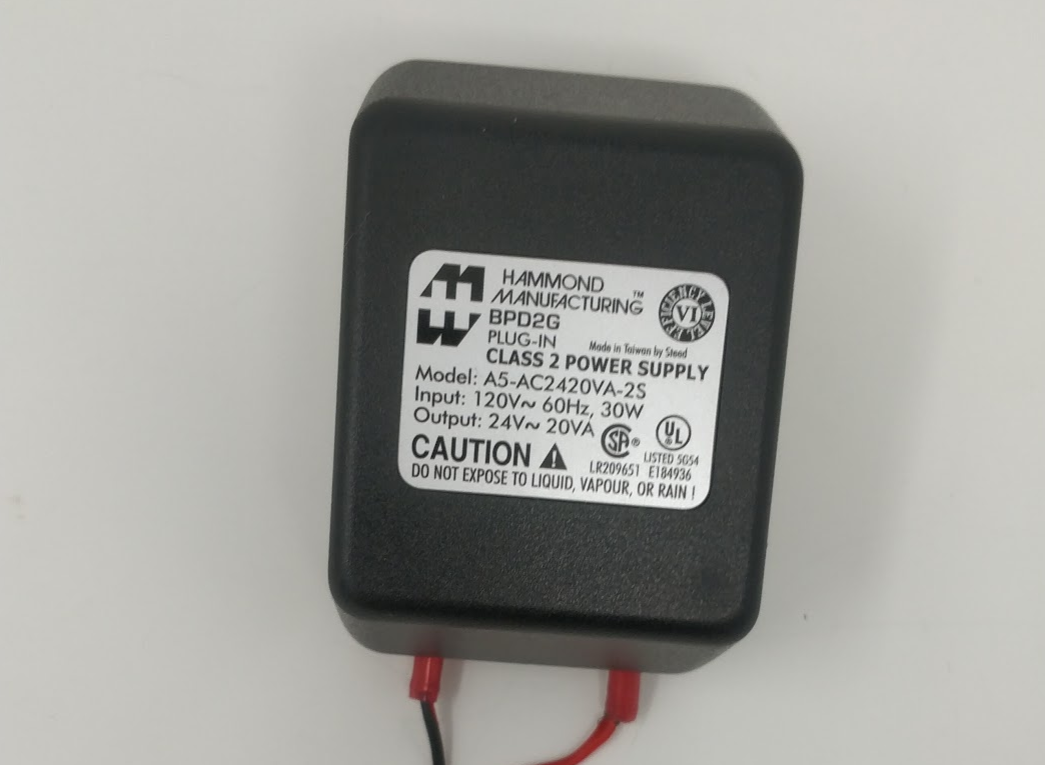

You may want to power the Central Air Monitor a wall outlet. If so, we recommend using a 24VAC wall plug as shown in the photo. As with the previous methods, it does not matter which terminal each wire is connected to.



Note: To avoid shorting the other side of the wires, avoid plugging this into the wall until STEP 9 is complete.

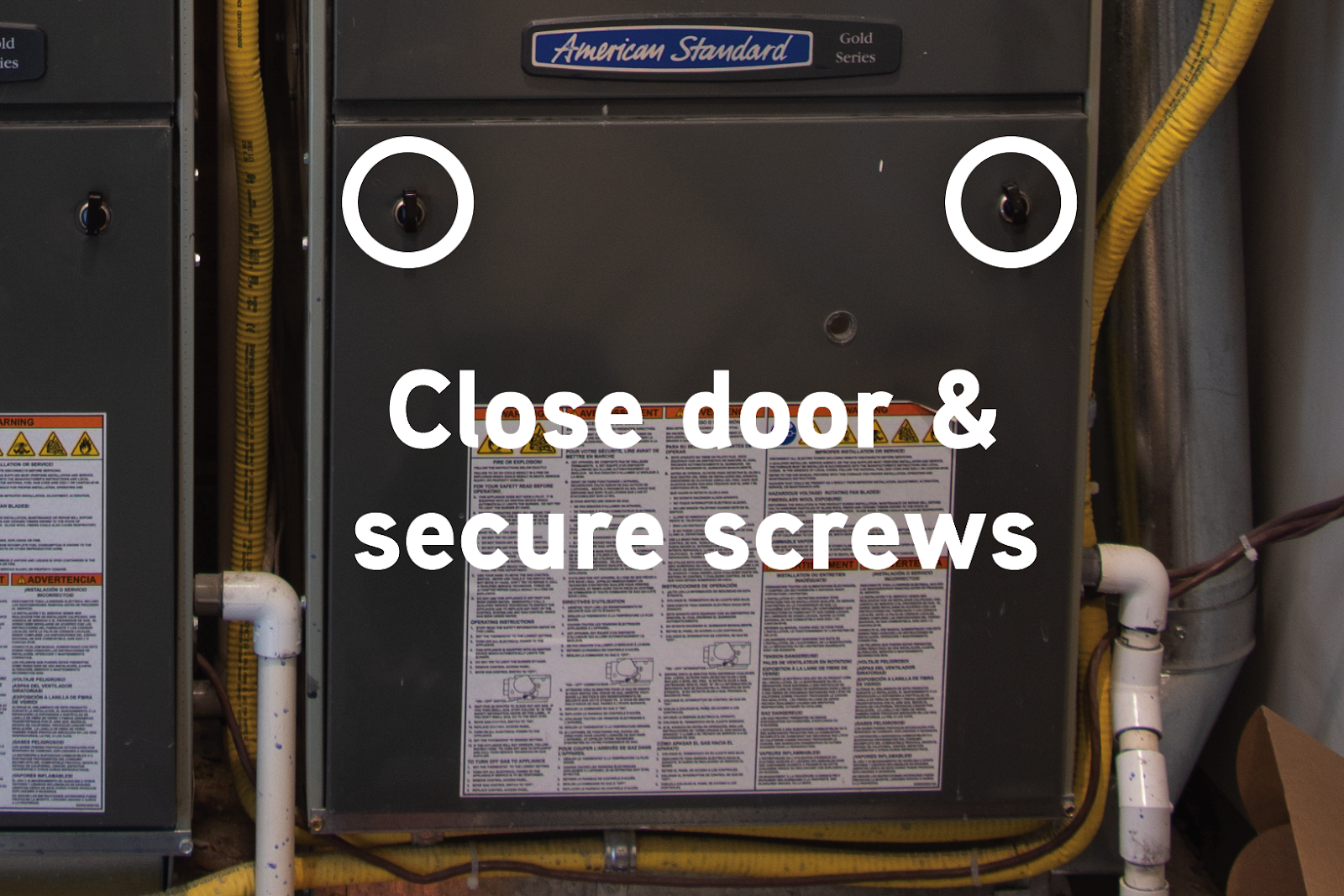

4. Close the furnace door & secure any screws.



5. Connect the Central Air Monitor.

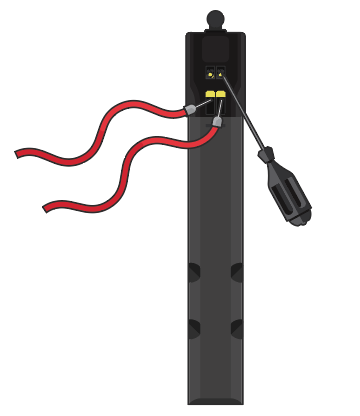

  • Connect the other end of the cable to the Central Air Monitor’s terminals.
  • Polarity doesn’t make a difference, secure wires either way.





6. Turn the furnace back on using the master switch or circuit breaker.

The Central Air Monitor’s LED light should turn solid blue.







Wireless Configuration

Configure Central Air Monitor to homeowner’s account.

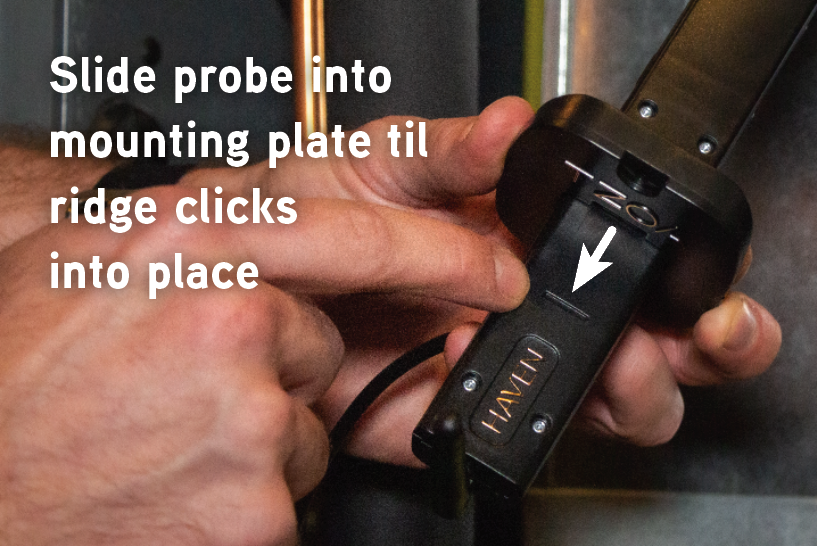

After the LED light turns blue, slide the probe through the mounting plate until it clicks into place. You'll feel a small but noticeable click, engaging the mounting plate interlock.



*PLEASE NOTE:

If the probe doesn't click into the mounting plate, the device installation will not complete. Once connected to WiFi, the LED will flash purple and green, indicating the probe is not clicked in properly.







Provisioning the Central Air Monitor


Open the HAVEN IAQ App, navigate to the HAVEN Pro page (from the menu in the top left corner) and select your installation flow:


*Now is a good time to ensure that you’ve got Bluetooth enabled on your phone.


Setup

Once the installation flow is open, follow the sequence to associate the device to the homeowner.

  • Choose your installation type, then find or add your customer & dwelling information.
    • If your customer has an existing account, simply enter their email address and our system will find them.
    • If they don't have an account yet, you can add their information manually.
  • Select the appropriate device and deployment type from the lists and continue by selecting next.

Screenshot_20220520-084049_HAVEN_IAQ.jpg Screenshot_20220520-084053_HAVEN_IAQ.jpg Screenshot_20220520-084526_HAVEN_IAQ.jpg

Reminder!
It is vital that you do not secure the monitor until you have captured the airflow, that's coming up in the Fine Tune step.



You've now added your customer's information, assigned the device to their dwelling, and have completed the initial setup process. You'll be met by a short confirmation panel (like the one below), after each section of the installation has been completed.



Fine Tuning

Just prior to inserting the probe into the duct, we'll fine tune our HVAC details. Adding accurate information at this stage will ensure that you are doing your part in providing your customers the most accurate and reliable IAQ data. This will also be used to contextualize the data for your consumption in the HAVEN Pro Portal too.



After you've completed the Zone, Air Handler, Duct and Filter details, you can use your anemometer to provide a reference airflow measurement. This is optional.








Optimizing the Airflow Signal

  • Ensure Bluetooth is turned on, the HAVEN IAQ App will now connect to the HAVEN Central Air Monitor
  • Turn on the forced air-system

Screenshot_20220520-084605_HAVEN_IAQ.jpg Screenshot_20220520-084623_HAVEN_IAQ.jpg


  • Peel of the protective layer on the back of the alignment plate.
  • Stick it onto the duct with the markings running parallel to the airflow.
  • Insert the probe into the plastic mounting plate and then align the notches on the left and right to the C position.
    • The airflow direction should be from A to T of the TZOA logo.
    • Do not secure the faceplate until the angle validation is complete!


Optimize angle & secure

  • The system will now test three positions to find the strongest and most reliable airflow.
  • Select Start and the process will run a 10-second validation, hold the probe in place and repeat this step until the app confirms the final position

Angle_C-start.png Angle_C.png Angle_A-start.png



Troubleshooting

  • Low flow: If you cannot find 0.4 m/s or 80 fpm of airflow, consider moving the Monitor to an unobstructed position elsewhere on the return duct. Then redo the test.


  • Wrong airflow direction detected: The Monitor's sensors are configured a specific way. It should only be installed with the airflow moving from the A to T of the TZOA logo. This may require you to flip the Monitor 180 degrees. Then redo the test.




Secure the mounting plate with the self-drilling screws provided.

Ok ok! Once you’ve validated the angle, you can FINALLY secure the mounting plate with the screws provided.






Completing the Installation



1. Connect to homeowner's WiFi & finish the installation.

  • Connect to the home’s WiFi network - your customer must supply the WiFi network name and password.
    • Please note the name and password are both case-sensitive! - If there's a typo, the Monitor's LED will turn orange and you'll be directed to re-enter the WiFi details.
  • The air handler should be running during this next self check: Just before the installation is complete, our system will run a self-analysis on the Monitor, connectivity, and our suite of sensors.
    • Cloud analysis
    • Probe position
    • Relative Humidity sensor
    • Temperature sensor
    • tVOC & PM2.5 sensors
    • Confirmation of adequate system airflow



Screenshot_20210428-140448_HAVEN_IAQ_Staging.jpg    Screenshot_20210428-162109_HAVEN_IAQ_Staging.jpg


Installation Report Troubleshooting

If a cloud error occurs during the self check, this is likely due to the device being in the middle of an "over the air" (OTA) firmware update. This can be validated on the Monitor: the LED will be flashing green and aqua. All you need to do is perform a soft reset on the Monitor and then wait for the Monitor's LED to turn solid green with an aqua flash every minute. If it doesn't settle in this state in 1-2 minutes, perform a soft reset once more. This should do it.

Click "RETRY" on the Installation Report page & the installation will complete.



What next?

Your Central Air Monitor has now been installed but if you wish to continue onwards & install additional HAVEN hardware, you can select this equipment from the following options or choose I'm Done.



Ready to install your first Central Air Controller?

Check out these Controller support articles that will help you control your customers' air and ensure they breathe better.

Related Articles

It's now time for your homeowner to log into their HAVEN IAQ App to check out their data. You can also begin to familiarize yourself with their data via the Pro Portal.




For Installation Support contact us directly via 1-833-442-7776 or prosupport@haveniaq.com
