Install / One-step equipment setup

Starting an install from scratch

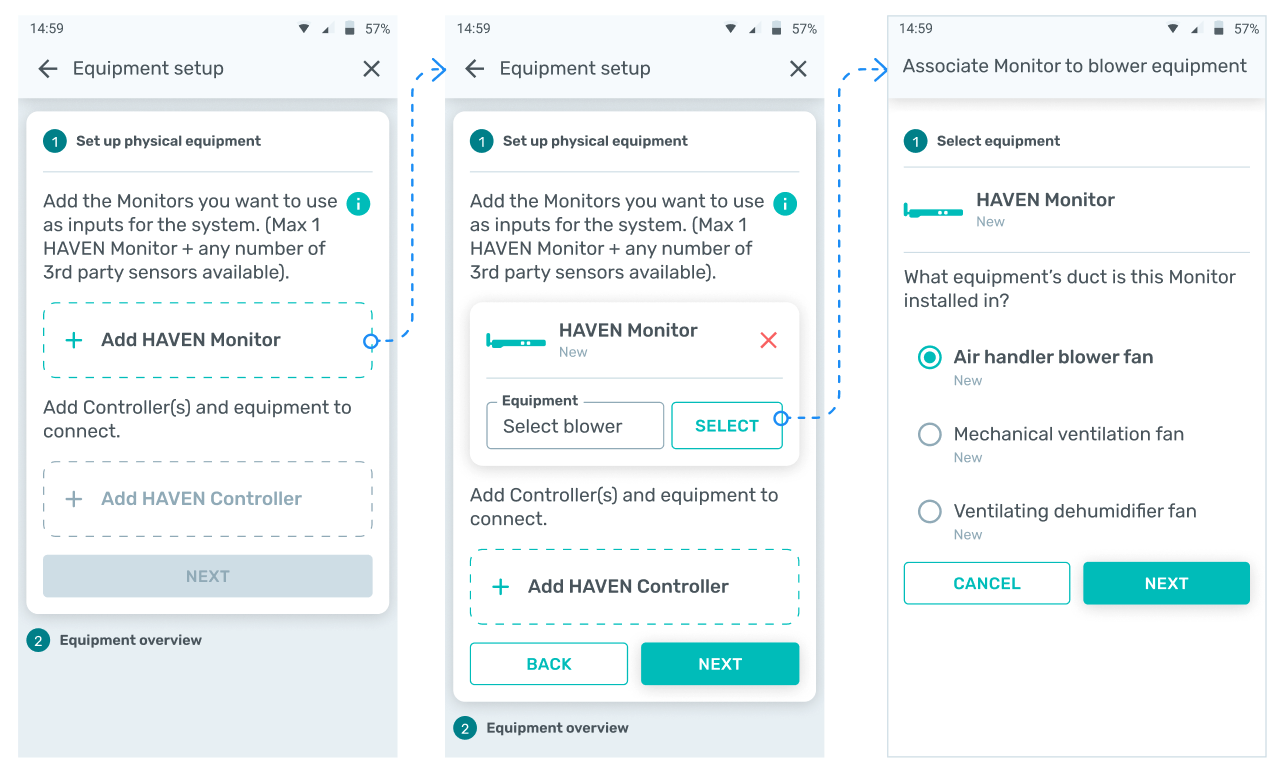

1. 1. First, add a Monitor and the blower equipment its connected to.

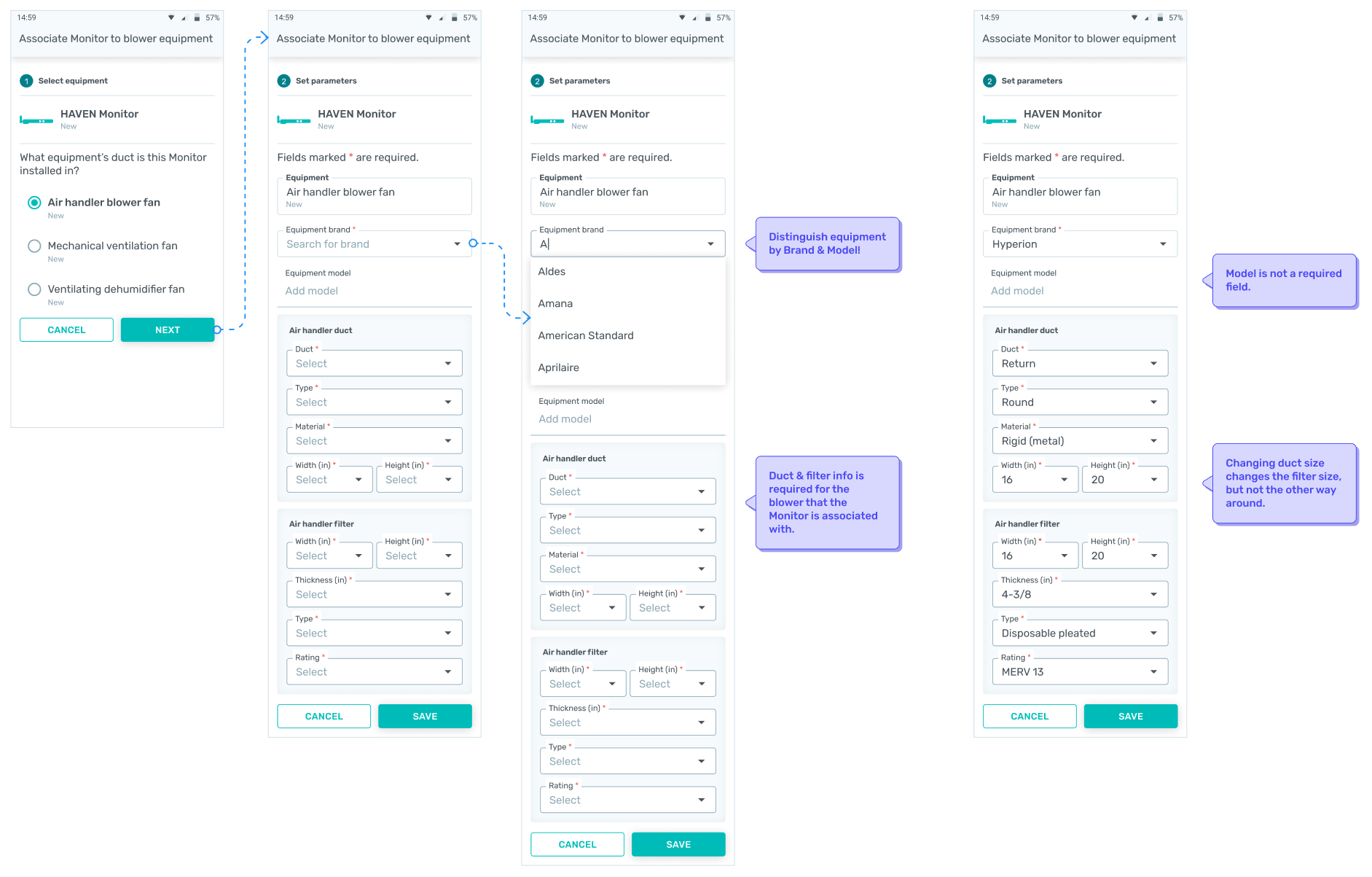

      New fields include Brand and Model, to help you identify the equipment after installation. Start typing the brand to see if it's a in our database. If it's not, you can still add it as a custom option.

      Duct and filter info continue to be required fields for the blower equipment that the Monitor is associated with. When you add in the duct dimensions for where the Monitor is installed, it will prepopulate the filter with the same dimensions. Filter dimensions can be changed independently too.

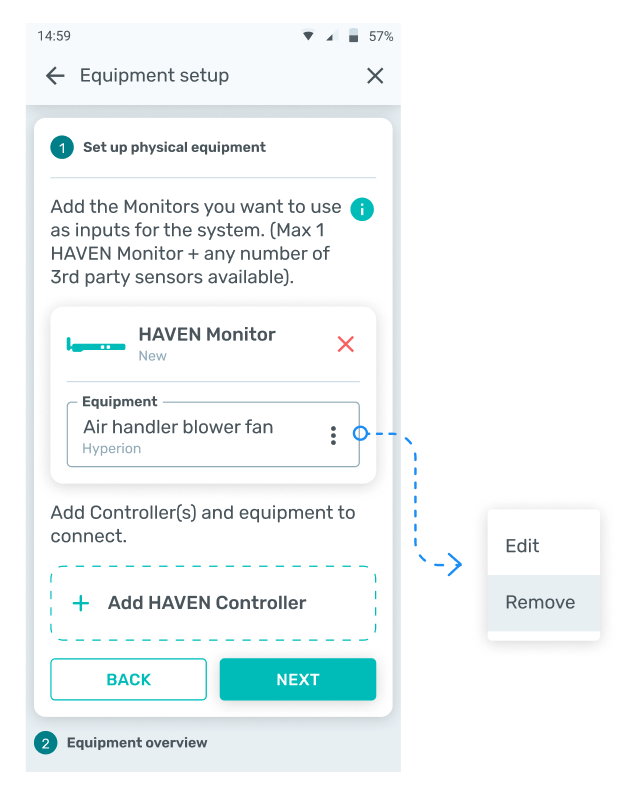

      Once you save the new equipment, you can still go back in and edit any details or remove it if you want to start over.

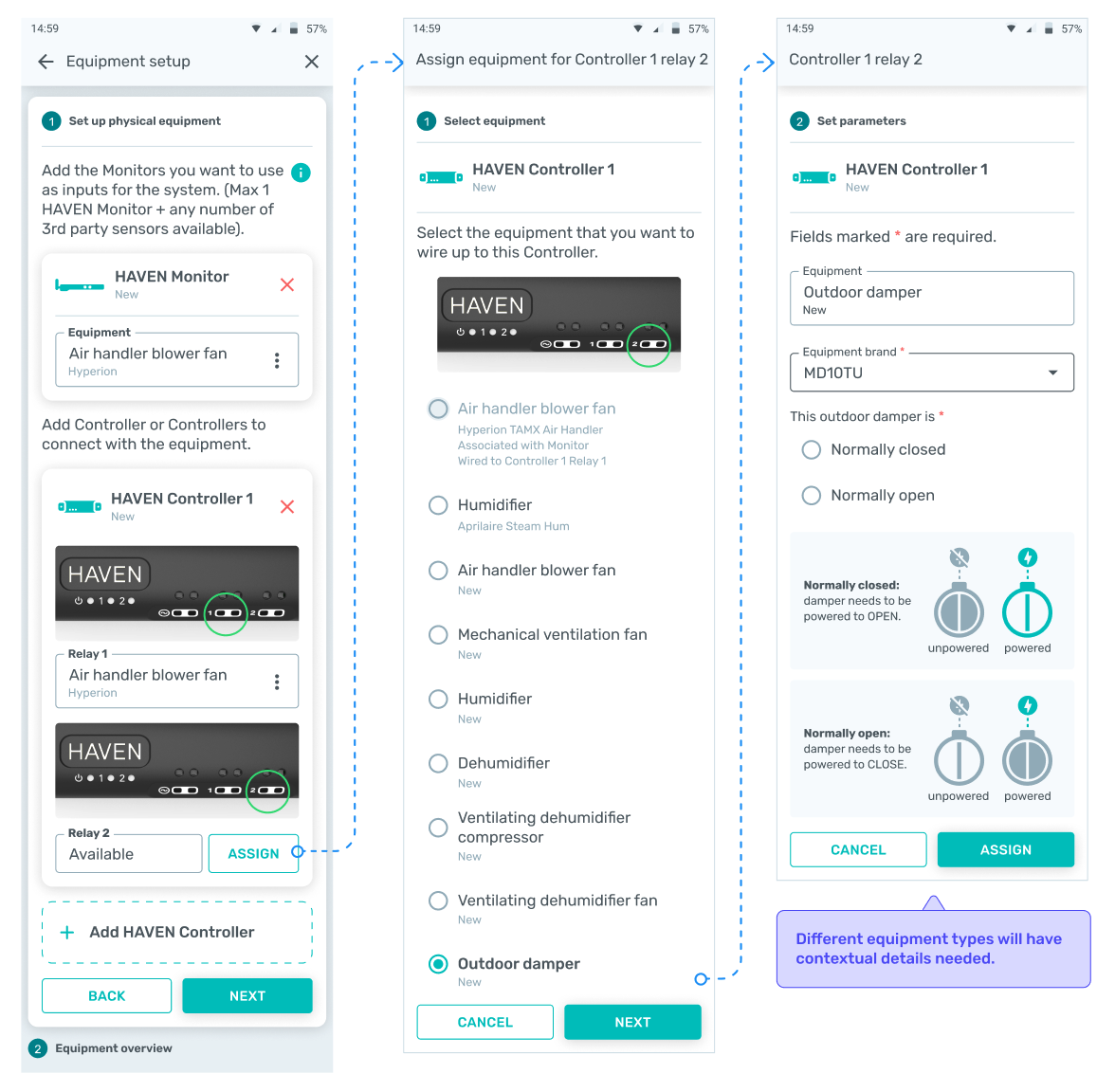

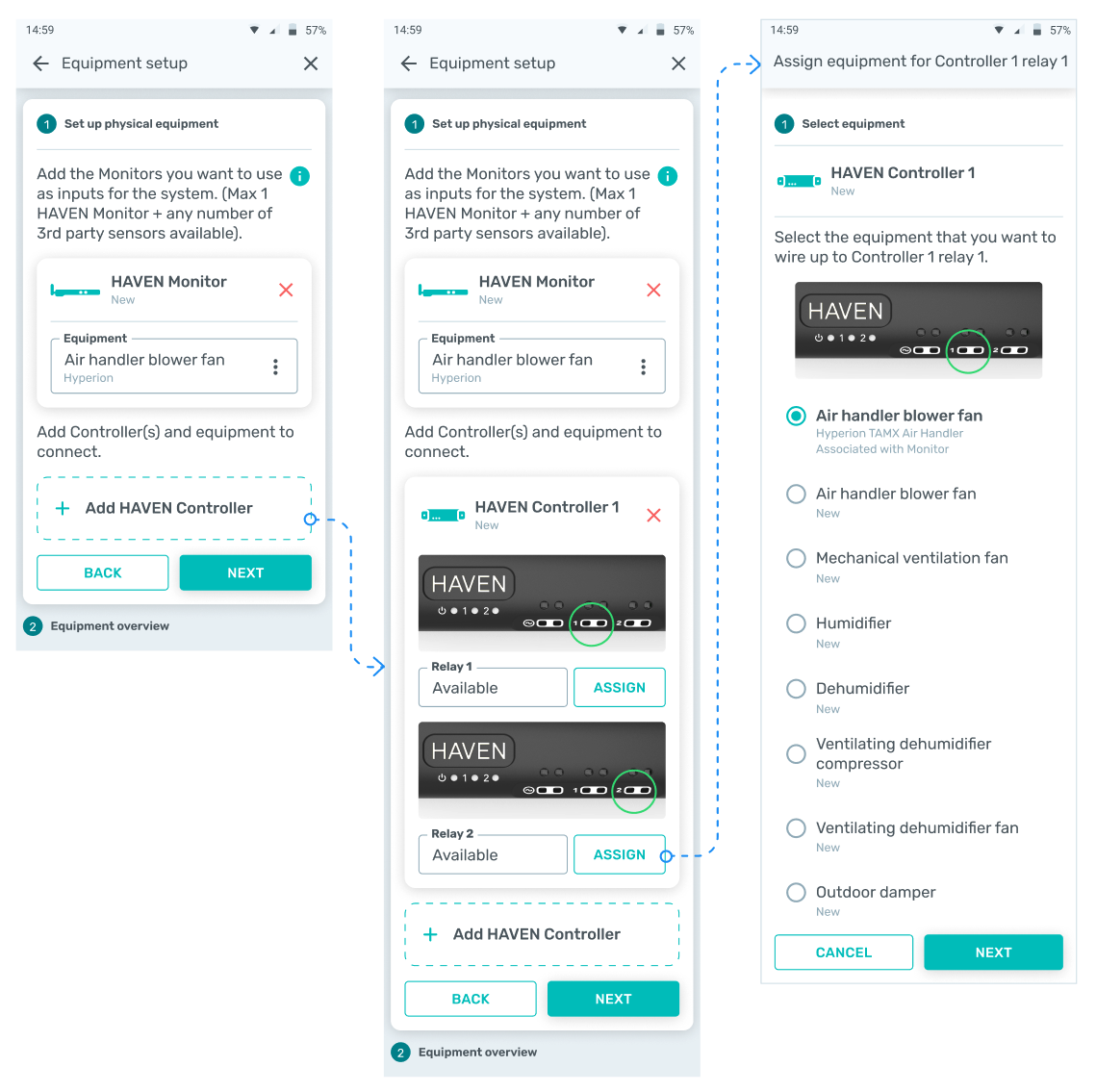

2. Next, add a Controller (if you are wanting to use HAVEN to automate equipment in the home). The process is basically the same as the Monitor, with the difference that the technician is choosing which relay the equipment will be wired up to.

   The equipment that the Monitor is associated with will be tagged as such, to make it easy to select it for controls.

   If you've already connected one Controller relay to a piece of equipment, it will be labeled as such when looking at what other equipment can be connected to subsequent relays.

   If you want to change which relay it's connected to, you need to remove it in the overview page and then re-add it to the relay you want it to be wired to.


3. Continue adding Controllers if needed depending how many pieces of equipment you are wanting to automate.

   Any further blower equipment that is added will have optional filters.

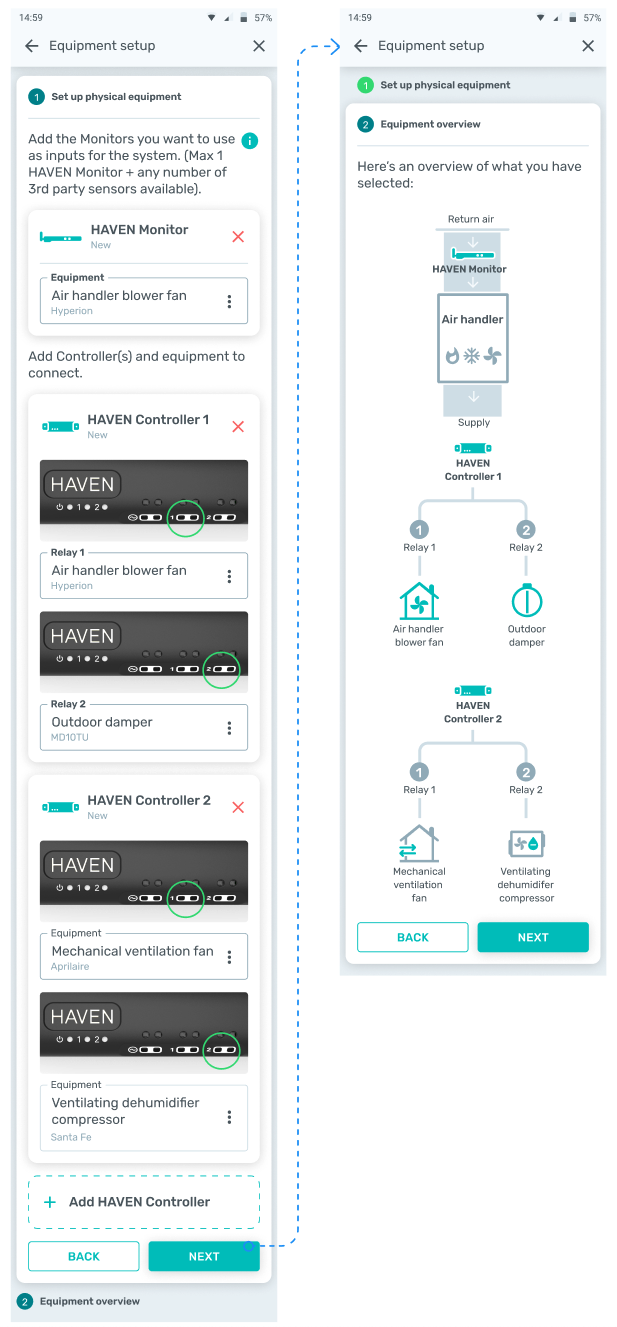

4. Once you're happy with how the equipment is set up, click next and you'll have one more chance to review the setup.

5. The next step takes the technician through connecting the Monitor and Controllers to WiFi and performing the installation tests, before reviewing the HAVEN interlock and automation defaults. The interlock and automation setups don't have to be completed from the installation location though. The technician can leave the attic/basement/HVAC room and find a comfier spot to review, or even just skip them in the app and edit them later from the Pro Portal.
